knitted wire mesh, steel grating
Chicken cage grates, shredded steel grates

Distribution of wire mesh, wire mesh, wire mesh, barbed wire, steel structures such as steel structure steel grating steel wire mesh steel wire grating , pvc coated wire mesh , diamond wire mesh  Stainless steel conveyor belt , mesh and mesh, brass-copper mesh and PVC-plated sieve , Diamond mesh rolls which can be produced up to 5 mm , stainless steel mesh and wire sieve , small-large square sieve, fast fence Wiremesh , Wire Mesh Rolls , Rolled Deformed Wire , Round Wire , Knitted Mesh Fence , Steel Binding Wire , Barbed Wire , Wire Mesh Belt from a standardized factory in Thailand

knitted wire mesh

Knitted wire netting made from wire sizes from 2 mm. - 4 mm., spaced 1/4" - 3" by using galvanized steel wire (GALVANZIED STEEL WIRE) with a layer of zinc thickness approximately 40-80 g/ sq.m. has a smooth wire surface It is corrosion resistant and weather resistant. can be used outside Work in various livestock farms by bringing wire to weave in a diamond pattern

The raw materials that can be used to produce knitted nets are as follows:

1. Galvanized Steel Wire

2. Stainless Steel Wire

3. PVC Wire (PVC Coated Wire Mesh)


Product dimensions are from height x length.



  • production height   1 meter /1.20 meter/ 1.5 meter / 2 meter / 3 meter / 4 meter



  • Produced length  10 meters per roll


standard product


Knitted mesh 2" full, wire 3 mm. (no.11)

  • Size 1.00 x 10.00 m.

  • Size 1.20 x 10.40 m.

  • Size 1.50 x 10.00 m.

  • Size 2.00 x 10.00 m.

General 2" knitted mesh (2-1/4") 3 mm wire (no.11)

  • Size 1.00 x 10.00 m.

  • Size 1.20 x 10.40 m.

  • Size 1.50 x 10.00 m.

  • Size 2.00 x 10.00 m.

  • Size 1.00 x 10.00 m.

  • Size 1.20 x 10.40 m.

  • Size 1.50 x 10.00 m.

  • Size 2.00 x 10.00 m.

**Note, other sizes, in addition, can be ordered according to the table below. Order production 7-14 working days.
#knitted netting #galvanized knitted netting #fence netting #mesh fence #animal fence #chicken cage net #worm net # fence netting


steel grating

Steel grid (Wire Mesh) square eye

Steel grating (Wire Mesh)  square weave The worm-like wire is produced by using galvanized steel wire (Galvanized Stee Wire) at a layer of 40-80 m/m2, resistant to corrosion. l Suitable for preventing birds from flying into the nest in the building. or the factory through the vent which can cause damage later In addition, it is also used for other purposes, such as used to support heat insulating sheets under the roof, fence factory fences, house fences, parks, sports fields, etc.

The size of the wire that can be produced to order is from 2.00 mm. - 4.00 mm. (wire size +/- 0.05 mm.)

TIS standard wire size, size 3.2 mm.

Characteristics of use of wire mesh (WIRE NETTING) are as follows:

1. Demarcation of barriers for safety on roads, railways, airports, and buildings.

2. Blocking in a transparent manner

3. Cattle fences, bird cages, cages for small animals

The raw materials that can be used for production are as follows:

1. Galvanized Steel Wire

2. Stainless Steel Wire

Standard size (sheet)

  • Width produced 1.00 m / 1.20 m /1.50 m / up to 2.40 m

  • Length per sheet 2.00 meters and 2.40 meters to 5.00 meters



Standard products that are available for sale

Sieve 1-1/2" #11(3mm) common eye

  • Size 1.00 x 2.00 m.

  • Size 1.20 x 2.40 m.

  • Size 1.20 x 2.00 m.

  • Size 1.50 x 2.00 m.

Sieve 1/2" #12(2.6mm)

  • Size 1.00 x 2.00 m.

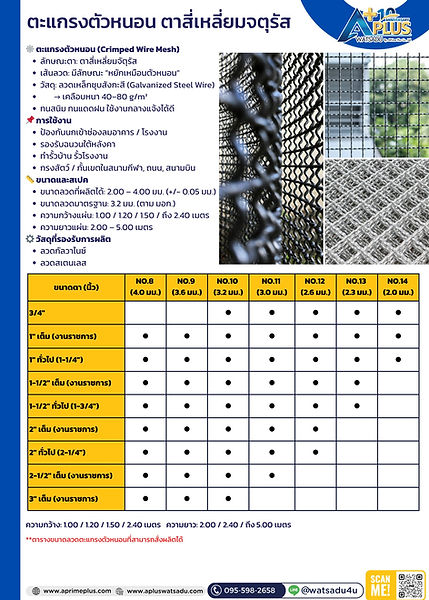

Table of sizes of wire mesh worms that can be made to order
